532nm拉曼激光器~1000mW
NBET-F-532/500~1000mW

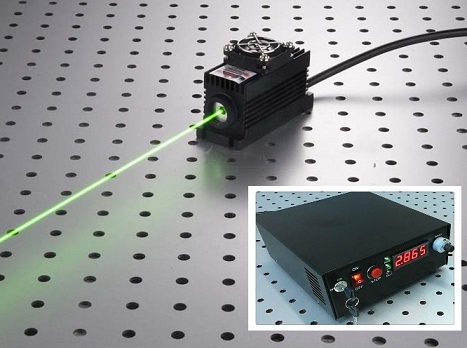

SINGLE LONGITUDINAL MODE，GREEN LASER AT 532 nm
All solid state single longitudinal mode，green laser at 532 nm is made features of
ultra compact, long lifetime, low cost and，easy operating, which is used in DNA
sequencing, flow cytometry, cell sorting,，optical instrument, spectrum analysis,
interference, measurement, holography,，physics experiment, etc.
技術參數
Wavelength (nm) 532±1
Operating mode CW
Output power (mW) >500, 600, … , 1000
Power stability (rms, over 4 hours) <1%, <3%, <5%
Transverse mode TEM00
Longitudinal mode Single
Spectral linewidth (nm) <0.00001
Coherent length (m) >50
Noise of amplitude (rms, 1Hz~20MHz) <1%, typical<0.5%
M2 factor <1.5
Beam diameter at the aperture (1/e2, mm) <2.5
Beam divergence, full angle (mrad) <1.2
Polarization ratio >100:1, Vertical±5 degree (Horizontal Optional)
Warm-up time (minutes) <10
Pointing stability after warm-up (mrad) <0.05
Beam height from base plate (mm) 45
Operating temperature (℃) 15~35
Power supply (90-264VAC) PSU-H-FDA
Expected lifetime (hours) 10000
Warranty 1 year
選型指南
|
NBET-FN-360nm |
360nm半導體激光器，數顯可調。 |
|
NBET -III-400/405/410/415nm |
400nm半導體激光器，數顯可調。 |
|
NBET-III-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-F-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-FN-532nm |
532nm半導體激光器，數顯可調。 |
|
NBET-D-785nm |
785nm半導體激光器，數顯可調。 |
|
NBET-III-1064nm |
1064nm半導體激光器，數顯可調。 |
